Conventional fire detection

Description

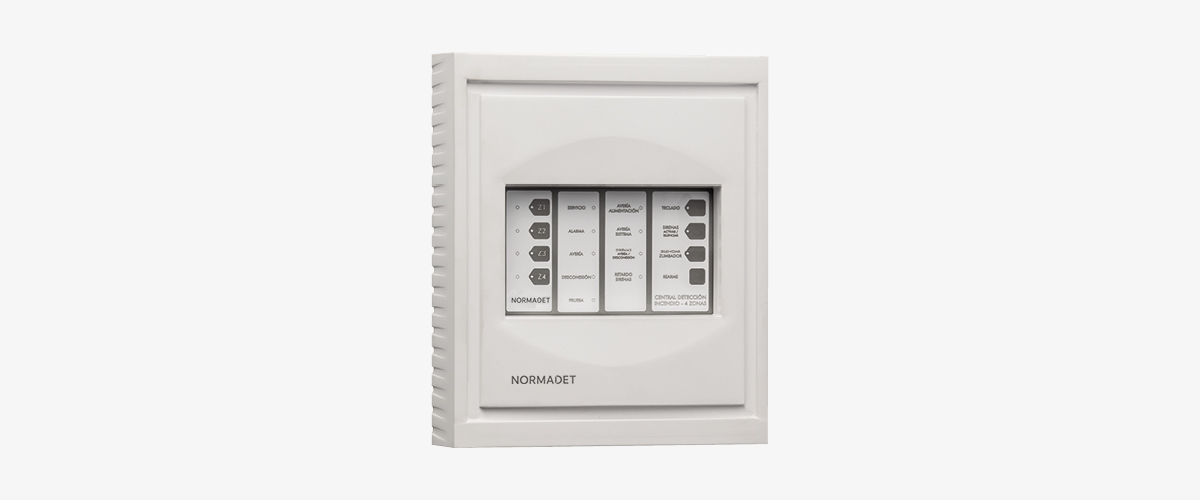

Control unit for fire detection systems in small and medium sized buildings. Robust and reliable, its features allow fast, efficient installation and maintenance, simple operation and an attractive housing.

Most relevant features: ​

• Microprocessor controlled and easy access code for keypad activation.
• Programmable sounders delay.
• One man test facility.
• Zones isolation possibility.
• General alarm press button for evacuation function.
• Specific indication for detector’s fire alarm or manual call alarm.
• Specific indication of fire zones or sounder line faults.
• 2 supervised sounders output.
• 2 voltage free relays for fire and fault.
• Automatic resettable fuses.
• Different zones output optional module.
• RS-485 output to connect optional communication card (repeaters, communicators, etc)
• EN 54-2 y 4 certified.

References

CONTROL AND INDICATION

NCC2

2 zones conventional fire detection panel. Size: 281 x 231 x 98 mm. (Small size housing)

NCC4P

4 zones conventional fire detection panel. Size: 281 x 231 x 98 mm. (Small size housing)

NCC4G

4 zones conventional fire detection panel. Size: 339 x 332 x 90 mm. (Large size housing).

NCC8

8 zones conventional fire detection panel. Size: 339 x 332 x 90 mm. (Large size housing).

NCC12

12 zones conventional fire detection panel. Size: 339 x 332 x 90 mm. (Large size housing).

NCC4G-1TR

4 zones conventional fire detection panel, it includes relay outputs by zone. Dimensions: 339 x 332 x 90 mm. (Large size housing)

NCC8-2TR

8 zones conventional fire detection panel, it includes relay outputs by zone. Dimensions: 339 x 332 x 90 mm. (Large size housing)

NCC12-3TR

12 zones conventional fire detection panel, it includes relay outputs by zone. Dimensions: 339 x 332 x 90 mm. (Large size housing)

Batteries

ACUPL12V2 Rechargeable battery 12V · 2,2Ah. ACUPL12V7 Rechargeable battery 12V · 7Ah. ACUPL12V9 Rechargeable battery 12V · 9Ah.
