Control panels

Description

Installation with two polarity free wires in free architecture.

Most relevant features: ​

• Filters are not required.
• Up to 10 years expected operational life.
• Only 2 wire free architecture installation unpolarized.
• Up to 16 detectors per zone, fully controlled (Address, alarm or fault).
• Programmable ventilation delay for energy saving.
• 3 different programmable level outputs: ventilation, turbo ventilation and alarm.
• Nitrogen Dioxide (NO2) electrochemical detectors can be integrated in the same detection line with CO detectors.
• UNE-23300-84 certified.

References

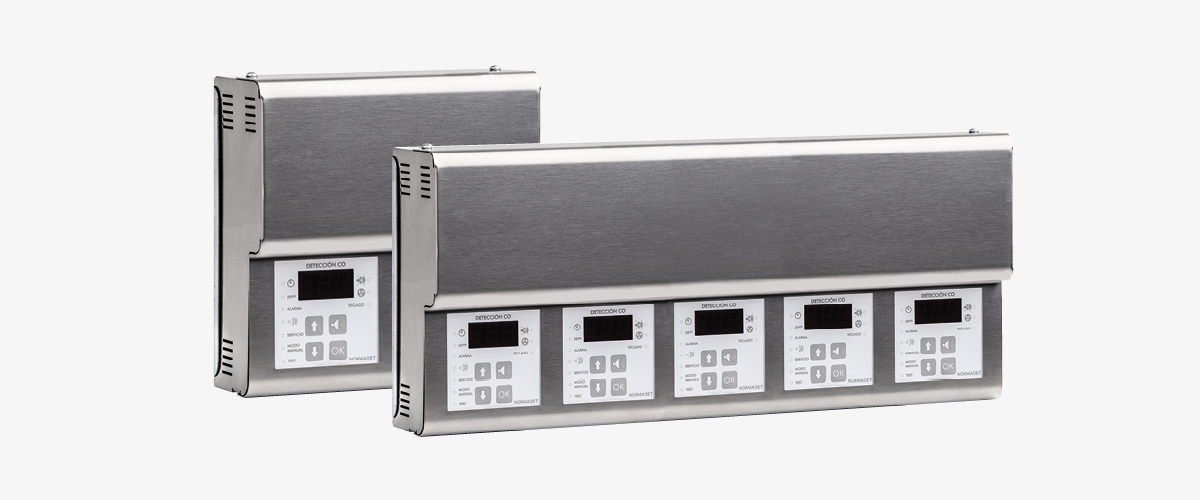

CONTROL AND INDICATION

NCMC1

CO Detection Control Panel with 1 zone module in metal cabinet sized 195 x 195 x 85 mm, and up to 2 zone modules.

NCMC2

CO Detection Control Panel with 2 zone modules in metal cabinet sized 195 x 195 x 85 mm

NCMC3

CO Detection Control Panel with 3 zone modules in metal cabinet sized 488 x 195 x 85 mm, and up to 5 zone modules.

NCMC4

CO Detection Control Panel with 4 zone modules in metal cabinet sized 488 x 195 x 85 mm, and up to 5 zone modules.

NCMC5

CO Detection Control Panel with 5 zone modules in metal cabinet sized 488 x 195 x 85 mm.
